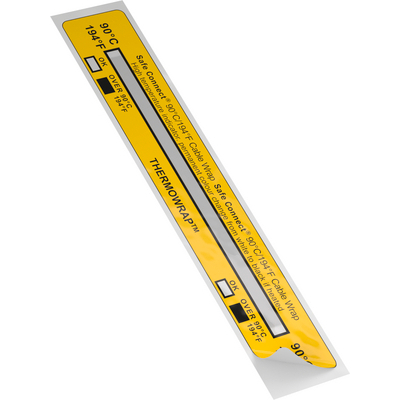

FLEXIMARK® THERMO WRAP

Fördelar

• The attached temperature indicators make visual inspection of electrical equipment possible. A colour change occurs if the temperature is exceeded.
• Quickly identifying overheated electrical components makes rapid cause analysis possible. This allows appropriate countermeasures to be initiated to avoid plant downtimes.
• 24/7 monitoring and the memory effect make it possible to continuously record temperature exceedance, and can act as an early warning of overheating.
• Safe, fast and uncomplicated installation.
• Suitable for cable outer diameters of up to 33 mm.

Användningsområden

• For indicating that temperatures have been exceeded.
• Irreversible colour change at temperatures from +70°C or +90°C (depending on article).

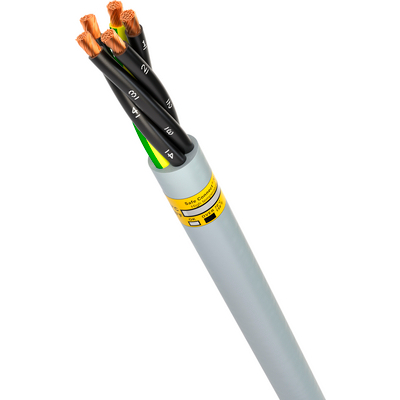

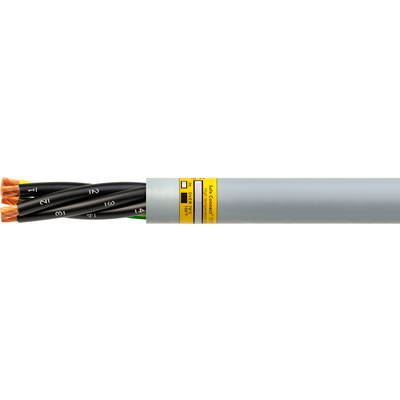

• For use with power cables.
• Can be used in dry interiors.

Övrigt

• Limitations: These labels are designed to use on electrical equipment and as such electrical safety must be assessed by a competent electrician prior to their application.FLEXIMARK® THERMO WRAP is not suitable for unprotected use outdoors or in direct sunlight. The wraps are vulnerable to degradation and non-performance from prolonged exposure to ultra-violet (UV) light.FLEXIMARK® THERMO WRAP will not prevent electrical faults or fires but will aid in monitoring abnormal temperatures and will give visual indication of abnormal wire insulation temperature above 70°C/90 °C for whatever underlying cause.

Klassificering ETIM 5

• EC003592
•

Färg

• Gul
•

Material

• Polyester
  Täckfilm: Polyester
  Lim: Akryl
  Material för färgförändring: Giftfritt vitt värmereagerande ämne på en svart absorberande baksida fäst med akryllim.
•

Temperaturområde

• - Aktiveringstemperatur: +70°C och +90°C
  - Tolerans: +/- 1°C
  - Svarstid: 5-20 sekunder
  - Förvaras i normal rumstemperatur och luftfuktighet
•
